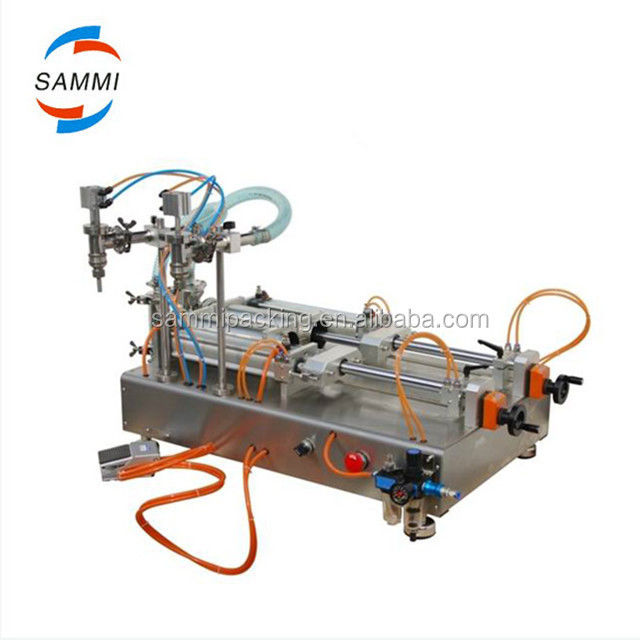

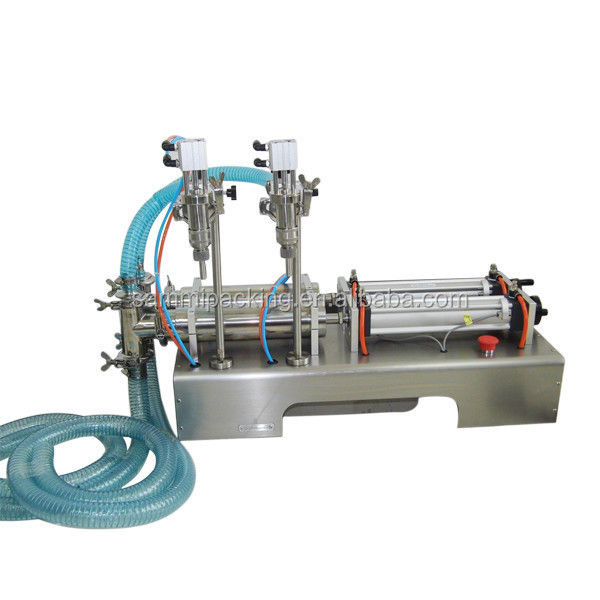

High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Kontakt mit uns

Bitte um ein Angebot

High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

Einzelheiten zum Produkt

Maschinenleistung:

500 Flaschen pro Stunde

Anwendung:

Getränke

包装类型:

Papierboxen

Packungsmaterial:

Holzgehalt

Automatisierbarkeit:

半自动

Antriebsart:

Elektrisch

elektrischer Druck:

220V50Hz

Ursprungsort:

China

Marke:

- Ich weiß.

尺寸 ((长×宽×高):

96*45*38 mm

Aufbewahrungszeit:

Ein Jahr

核心卖点:

Hochpräzision

Füllstoffe:

andere, 牛奶, 水, Öl, Saft

Maschinenprüfbericht:

可提供

视频 aus der Fabrik:

可提供

核心组件:

SPS

Anwendung:

Medizinische Behandlung

Lokaler Servicestandort:

Keine

Marketing Type:

Neues Produkt 2020

类型:

Verpackungsmaschine

状态:

Neu

适用行业:

食品饮料加工厂, 饭店, 食品店, 餐饮店 Das ist ein sehr gutes Produkt.

Ausstellungsort (in welchen Ländern es Musterzimmer gibt):

Keine

核心组件质保期:

Ein Jahr

Gewicht:

40,0 Kilogramm

Hervorheben:

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Satz

Preis

$400-600 / set

Verwandte Produkte

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Beste Preis erhalten

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Beste Preis erhalten

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Beste Preis erhalten

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Feature:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for low viscosity fluid filling.

Principle

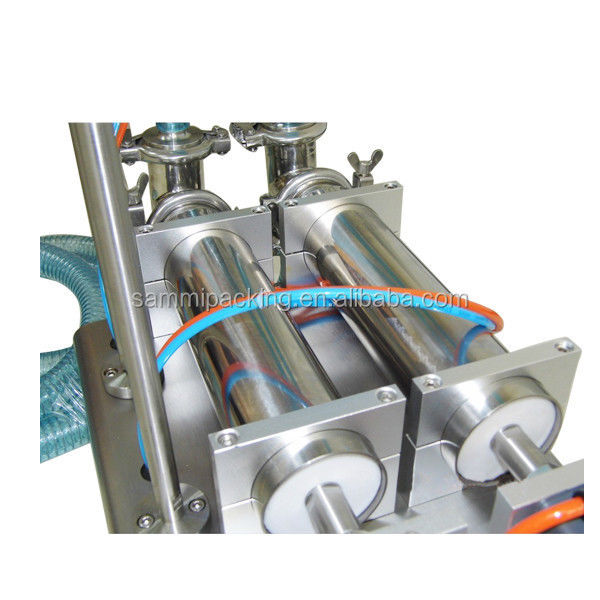

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Technical Parameters:

Machine model	GFA-W-2Y -100	GFA-W-2Y -300	GFA-W-2Y -500	GFA-W-2Y -1000	GFA-W-2Y 3000	GFA-W-2Y -5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can offer customized according to customer request
