Double Nozzles Automatic Mineral Water Bottle Automatic Soap Filler Detergent Liquid Filling Machine

automatic liquid filling machine

double nozzle soap filler

mineral water bottle filler

Kontakt mit uns

Bitte um ein Angebot

Double Nozzles Automatic Mineral Water Bottle Automatic Soap Filler Detergent Liquid Filling Machine

Einzelheiten zum Produkt

Maschinenleistung:

500 Flaschen pro Stunde

Anwendung:

Lebensmittel, Getränke, Chemikalien

包装类型:

易拉??, 瓶, 自立袋, 包, Tasche

Packungsmaterial:

Holzgehalt

Automatisierbarkeit:

Ganz automatisch

Antriebsart:

气动

elektrischer Druck:

220 V

Ursprungsort:

Guangdong, China

Marke:

- Ich weiß.

尺寸 ((长×宽×高):

2000*550*1800 mm

Aufbewahrungszeit:

Ein Jahr

核心卖点:

Hochproduktivität

Füllstoffe:

Wasser, Öl, Saft

灌装 Präzision:

1G, Flüssigkeit ≤ ± 1%, Paste ≤ ± 2%

Maschinenprüfbericht:

可提供

视频 aus der Fabrik:

可提供

核心组件:

SPS

Füllbereich:

(10-100 ml) * 6

Luftdruck:

4-6Kg/cm2

Füllgeschwindigkeit:

30-50 Flaschen/Minute

Aufbewahrungszeit:

Ein Jahr

Arbeitschef:

价格:

Wettbewerbsfähigkeit

质量:

entspricht Exportstandard

应用程序:

医疗

Marketing-Typ:

Neuprodukte 2020

类型:

Verpackungsmaschine

状态:

Neu

适用行业:

Produktionsstätte

Ausstellungsort (in welchen Ländern es Musterzimmer gibt):

Keine

核心组件质保期:

Ein Jahr

Gewicht:

450 kg

Hervorheben:

automatic liquid filling machine

double nozzle soap filler

mineral water bottle filler

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Satz

Preis

$3,000-3,600 / set

Verwandte Produkte

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Beste Preis erhalten

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Beste Preis erhalten

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Beste Preis erhalten

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

4 head liquid filling machine

Product Description

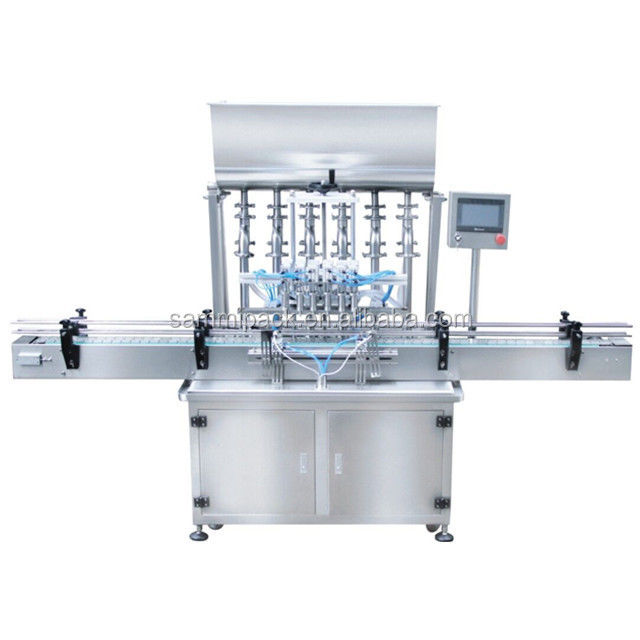

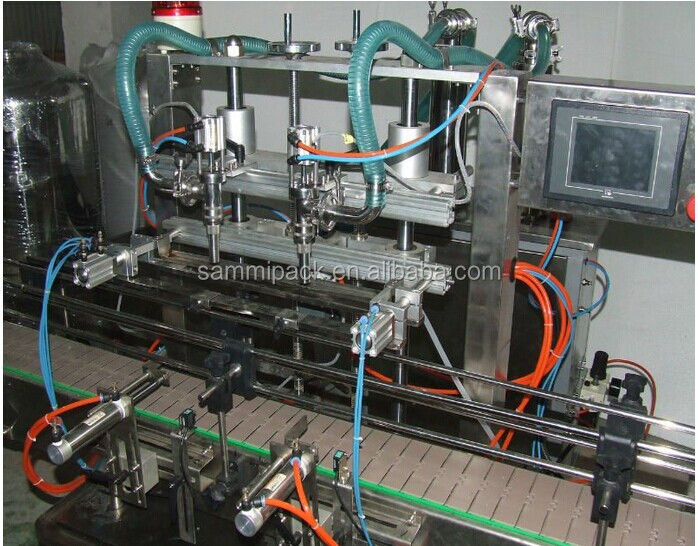

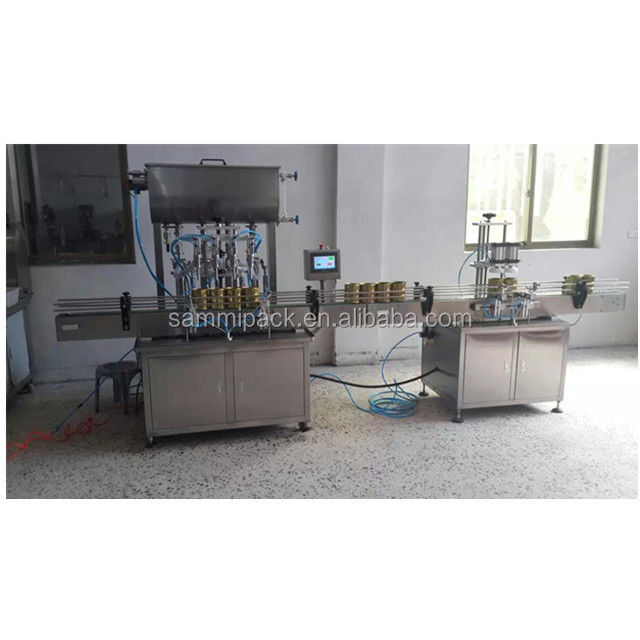

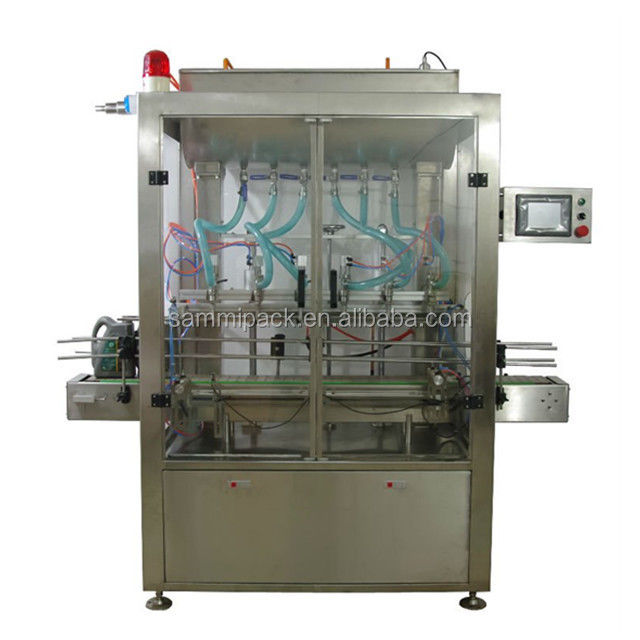

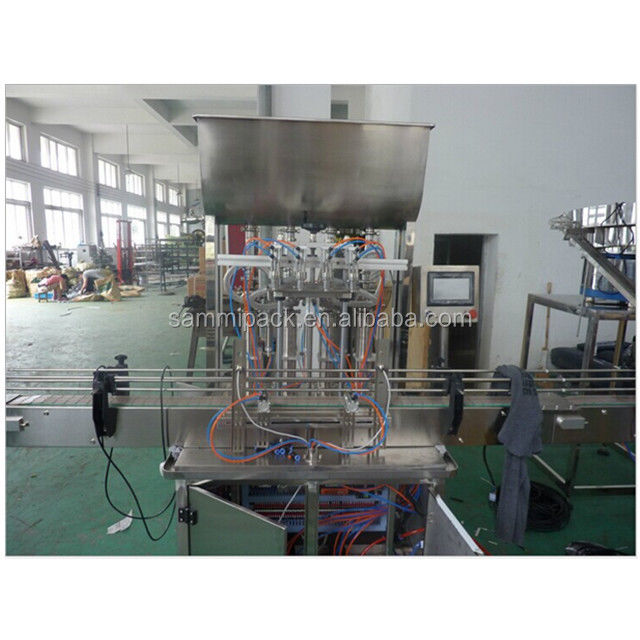

Automatic Liquid Filling Production Line: quick and accurate filling with Taiwan's AirTac component.

Automatic Liquid Filling Production Line 6 Nozzle:

This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.

Parameter of 6 head filling machine

Machine model	SM-100-2	SM-300-2	SM-500-2	SM-1000-2	SM-2500-2	SM-5000-2
Filling range	(10-100ml)×6	(30-300ml)×2	(50-500ml)×2	(100-1000ml)×2	(250-2500ml)×2	(500-5000ml)×2
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Filling speed	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	20-40bottles/min
Filling precision	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port
