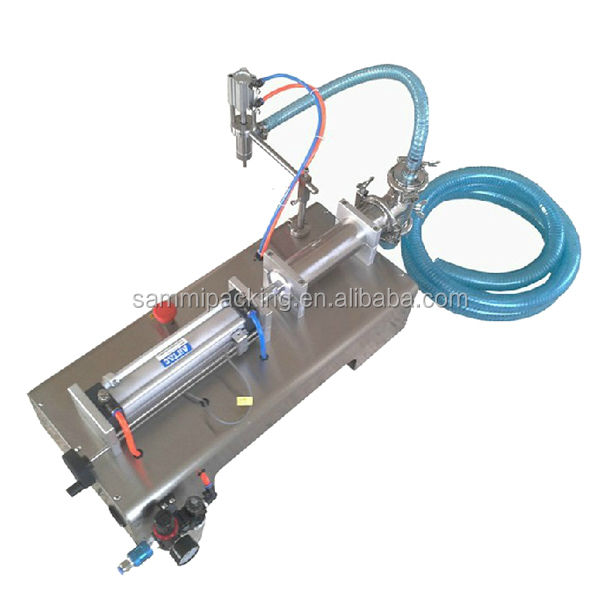

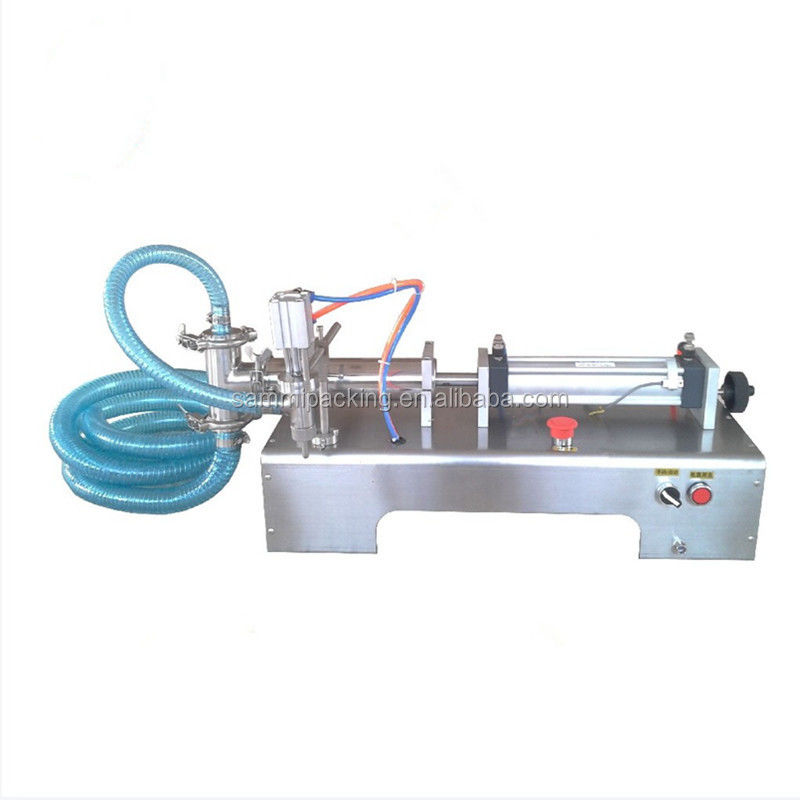

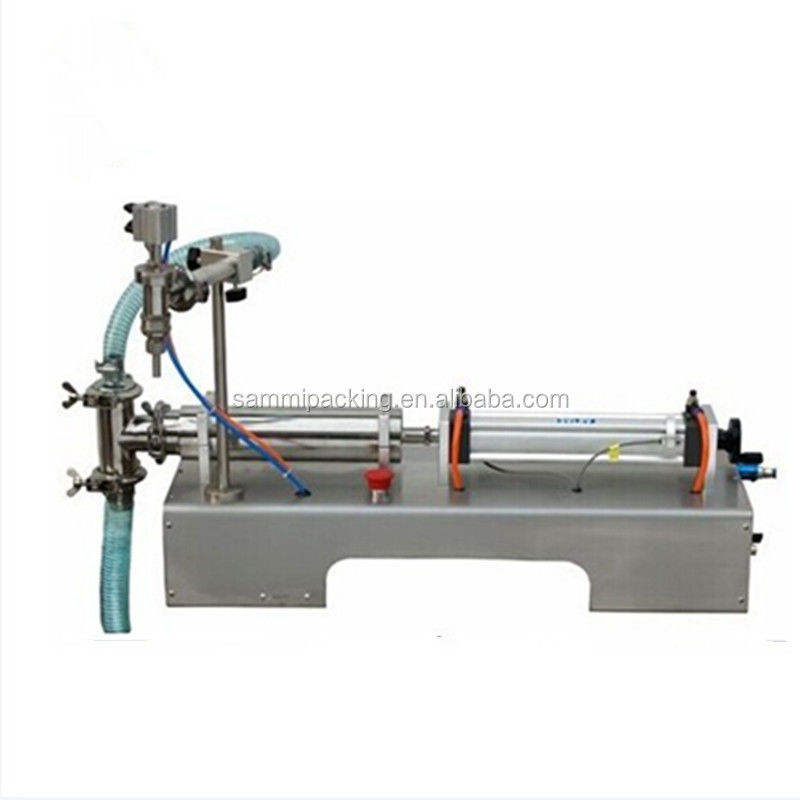

100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler

horizontal self-suction filling machine

table top manual piston filler

100-1000ml liquid filling machine

Kontakt mit uns

Bitte um ein Angebot

100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler

Einzelheiten zum Produkt

Anwendung:

Getränke

包装类型:

Papierboxen

Packungsmaterial:

Holzgehalt

Automatisierbarkeit:

半自动

Antriebsart:

气动

elektrischer Druck:

220V/110V

Ursprungsort:

Guangdong, China

Marke:

- Ich weiß.

尺寸 ((长×宽×高):

125*40 * 30mm

Aufbewahrungszeit:

Ein Jahr

核心卖点:

Einfache Bedienung

Füllstoffe:

液体, Öl, Gel, Saft

灌装 Präzision:

1, 1 ml

Maschinenprüfbericht:

可提供

视频 aus der Fabrik:

可提供

核心组件:

电机

售后服务系统 (Siehe unten):

Videotechnologie-Unterstützung

Gewicht (KG):

Materialien:

Stahl

Produktname:

Flüssigkeitsabfüllmaschine

Füllmenge:

100-1000ML

Funktion:

归档

Füllgeschwindigkeit:

15-20 Flaschen/Minute

优势:

Hochpräzision

Hervorheben:

horizontal self-suction filling machine

table top manual piston filler

100-1000ml liquid filling machine

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Satz

Preis

$230-330 / set

Verwandte Produkte

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Beste Preis erhalten

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Beste Preis erhalten

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Beste Preis erhalten

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Features:

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit..

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.

1. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.

2. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements..

3. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy..

Technical Parameters:

Machine model	GFA-100	GFA-300	GFA-500	GFA-1000	GFA-3000	GFA-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request
